Supermarket Floor Renovation
Overnight retail re-tile with minimal disruption to opening hours.
Robotics

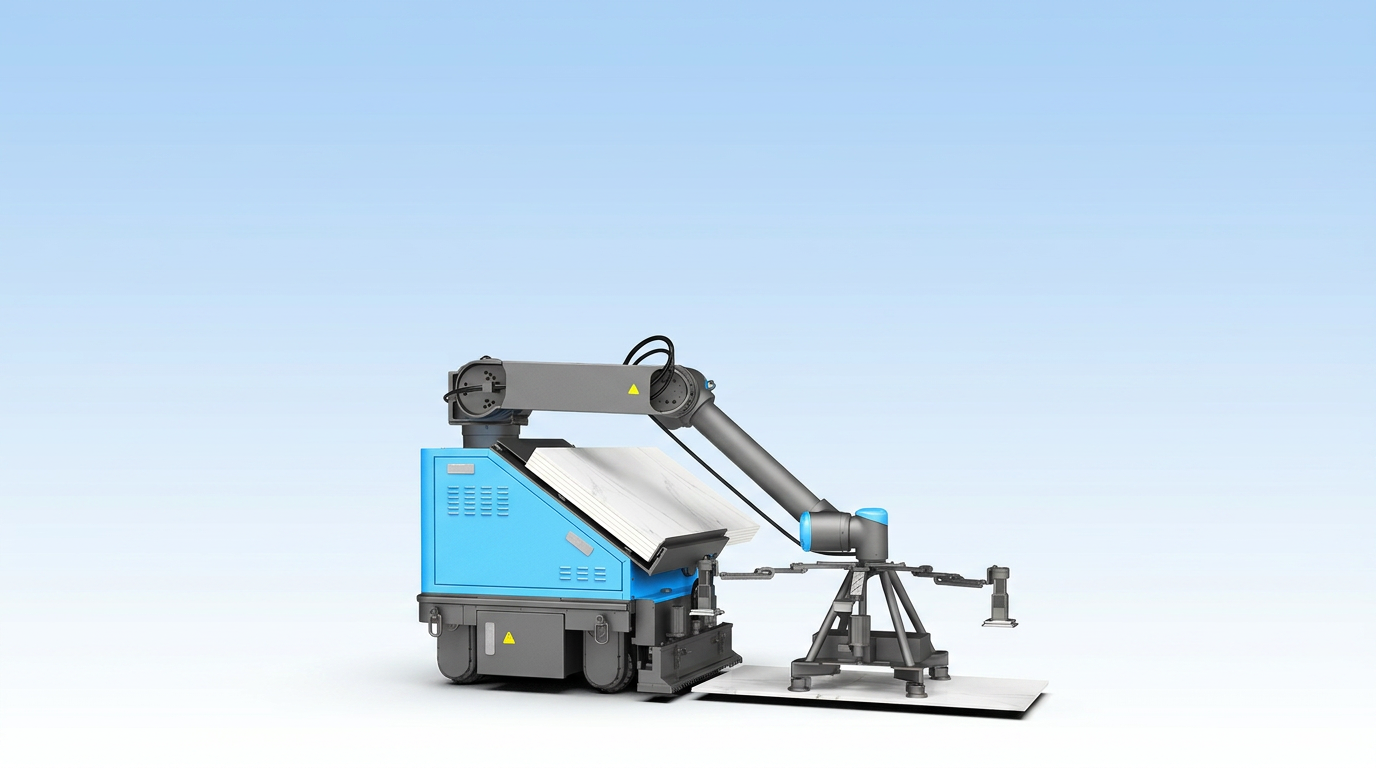

Floor Tile Paving Robot
Built for Real Jobsite Efficiency
An autonomous tile-laying robot that paves up to 194 sq ft per hour with laser-level precision. Now part of the USA Home Improvement distribution catalog for Sacramento-area commercial and high-end kitchen projects.
Live demos at our Rancho Cordova warehouse — 3667 Omec Park Drive.
Key Advantages
Why crews are adding robotics
High Efficiency
Lays up to 194 sq ft per hour with consistent output — equivalent to a multi-person crew working a full shift.
High Quality
Laser-leveled placement and precision mortar troweling deliver tighter joints and flatter floors than hand-set installs.
Intelligent
Onboard LiDAR, vision system, and a touchscreen tablet let one operator manage layout, cuts, and progress in real time.
Cost Down
Reduces tile-setter labor hours, callbacks, and rework — improving margins on large commercial floor projects.
Tile Compatibility
Handles the most common commercial and residential tile sizes
From standard 12-inch field tile to oversized 48-inch slabs, the paving robot adapts to the format your spec calls for.
12" × 12"12" × 24"18" × 18"24" × 24"24" × 48"32" × 32"36" × 36"48" × 48"
Technical Specifications
Engineered for the jobsite
All measurements in inches and pounds.
Product Dimensions
51.2 × 31.5 × 76.8 in
Weight
1,411 lb
Gross Weight
≤ 1,940 lb
Payload Capacity
66 lb
Endurance Time
More than 6 hours
Charging Time
5 – 6 hours
Battery Capacity
180 Ah
Charging Power
AC 220V
Paving Efficiency
Up to 194 sq ft / hr
No-Load Movement Speed
≤ 19.7 in/s
Speed While Paving
1.0 – 3.9 in/s
Obstacle Height
≤ 1.2 in
Climbing Ability
≤ 10°
Delivering Project Success
Proven on real installs
Airport Terminal
Large-format porcelain across a high-traffic concourse with tight tolerances.
Railway Station
Multi-zone station floor install delivered on an aggressive turnaround.
Standard Bundle
Key components included
Floor Tile Paving Robot
Tracked autonomous chassis with precision placement arm and integrated leveling system.
Control Tablet
Ruggedized touchscreen for layout configuration, live monitoring, and job reporting.
Battery Pack
180 Ah lithium pack delivering 6+ hours of continuous paving on a single charge.
Tile Loading Trolley
Wheeled cart that stages tiles next to the robot to keep the work cell fed.
Stirring Pail
Mixing station for keeping thin-set mortar at the right consistency throughout the shift.
Bucket Lift Pal
Lift assist that transfers mortar buckets from staging to the robot without manual strain.
Partner Services
Supported from first use to long-term operations
From the first jobsite demo through years of reliable production, we keep your team equipped, trained, and supported every step of the way.
Warehouse Demos
See the robot in action at our Rancho Cordova warehouse — 3667 Omec Park Drive. Bring your team, your tile spec, and your questions.
Operations Training
A 2-day training program covering operation, theory, and full workflow so your operators ship work day one.
Local Service & Support
Maintenance, repair, and after-sales support coordinated through our distributor network.
Hotline
Direct line to our robotics specialists for troubleshooting and technical guidance whenever your crew needs it.
Emergency Support
Rapid on-site service for critical issues so your install schedule stays on track.
Annual Maintenance
Scheduled inspections and replacement of wear components to keep the robot running smoothly year after year.
Why It Wins on Bid Day
One robot. One operator. The output of a full tile crew.
California's labor market is tight, workers' comp keeps climbing, and large-format tile is harder than ever to set by hand. The paving robot solves all three at once.
4×
Tile setters replaced
One operator runs the robot while it lays tile at full-crew pace.
↓ Comp Claims
Safer jobsite
No more bent-over setting all shift — fewer back, knee, and repetitive-strain claims.
24/7
No fatigue
Runs overnight retail re-tiles and weekend shutdowns without overtime burnout.
↓ Rework
Laser-level finish
Tighter joints and flatter floors mean fewer callbacks and lippage punch-list items.
Cost Savings Calculator
How much could one robot save your company?
The Floor Tile Paving Robot typically replaces a 4-person tile-setting crew with a single operator. Adjust the assumptions below to see your real annual savings on wages, workers' comp, and payroll burden.
Your assumptions
Default: 4 (one robot + one operator replaces a 4-person crew)
$
Fully loaded CA tile-setter wage. Default $26/hr.
%
CA tile/flooring class typically ~$9–15 per $100 of payroll.
%
FICA, FUTA, SUTA, healthcare, PTO. Typical ~22%.
Estimated annual savings
$278,720
≈ $23,227 every month
Direct wages$208,000
Workers' comp insurance$24,960
Payroll tax & benefits burden$45,760
Estimates only. Actual savings depend on project mix, comp class code, overtime, and operator wage. Does not include reduced rework, faster project turnover, or schedule acceleration on penalty-clause jobs.
No overtime stacking
Robot runs steady all shift — no time-and-a-half on tight schedules.
Lower injury exposure
Fewer repetitive-motion claims means a better X-mod over time.
Predictable bidding
Known sq ft / hr output lets you bid commercial floors with confidence.
See it live at our Rancho Cordova warehouse
Demos are hosted at our warehouse so your team can watch a full paving cycle, inspect the finish, and talk through workflow with our robotics specialists.
3667 Omec Park Drive, Rancho Cordova, CA
By appointment only — schedule below.
Warehouse Demo & Info Request
Schedule a demo at our warehouse
3667 Omec Park Drive, Rancho Cordova, CA
Tell us about your project and pick a preferred date. A robotics specialist will follow up to confirm your appointment, answer questions, and walk you through pricing.
